ARR-484GDGRDF
Shown with optional leg caps
GasElectric
Sealed Burner Freestanding Dual-Fuel Range

48" Cuisine Iconica Range

OVEN FEATURES
30” Electric Convection Oven (4.5 c.f.)

  • Bake element 3,500 watts
  • Broil element 3,500 watts
  • Convection element 2,500 watt
  • Convection fan modes: Bake, Convection Bake, Broil, Roast, Convection Roast, Warm, Proof, Dehydrate, Clean
  • Large oven accommodates full-size commercial sheet pans
  • Stainless steel Island Back trim included and installed

18” Electric Convection Oven (2.4 c.f.)

  • Bake element 2,400 watts
  • Broil element 2,400 watts
  • Convection element 2,500 watts
  • Convection fan modes: Bake, Convection Bake, Broil, Roast, Convection Roast, Warm, Proof, Dehydrate, Clean

COOKING SURFACE

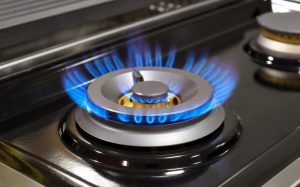

  • Up to 8 Brass burners, Dual Ring & Tower Burners - 25,000 BTU,
    18,000 BTU, 13,000 BTU
  • Excellent simmering, as low as 350 BTU
  • Available with 8 sealed burners, 6 sealed burners with griddle,
    6 sealed burners with grill, 4 sealed burners with double griddle, 4
    sealed burners with double grill, or 4 sealed burners with griddle and
    grill

DISCLAIMER:
*Manufacturer expressly reserves the right to make changes to the product, product selections and their specifications without notice.

Specfications

Burner Configurations


ARR-488DF


ARR-486GDDF


ARR-486GRDF

ARR-484GRGDDF

ARR-4842GDDF

ARR-4842GRDF

Large 25,000 BTU

Medium 18,000 BTU

Small 13,000 BTU
